Cables and Test Clips
| Standard Test Clips |
|
| SOIC-16 |
Standard JEDEC 16-lead packages |
$18.00 |
|
| SOIC-8 |
Standard JEDEC and EIAJ 8-lead packages) |
$18.00 |
|
| Premium Test Clips |
| SOIC-16 |
 |
$38.00 |
|

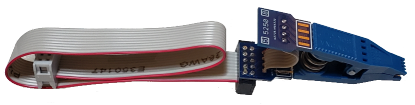

| SOIC-8 |
 |
$38.00 |
|
| Motherboard Specific Cables |
| MSI JSPI1 Cable |
 |
$5.00 |
|
| ASUS SPI Cable |
 |
$5.00 |
|
| EC 10-Pin IDC Wire Harnesses |
| EC Wire Harness (2.54mm) |
 |
$2.50
(1-pack)
$10.00
(5-pack)
|
|
| EC Wire Harness (2.00mm) |
 |
$2.50
(1-pack)
$10.00
(5-pack)
|
|
| In-circuit TSOP-48 Clips |
|
| |
Compatible with MACH¹ and XPORT, these adapters are designed to be used with the UNI-48-CLIP in order
to read/write memory in-circuit for both NAND and NOR memory in TSOP-48 packages.
This product is designed for professionals and it may not work in all situations.
Tip: in some situations it maybe neccasary to halt the processor connected to
the memory. One solution is to use FlashcatUSB Professional in JTAG mode and issue
the HIGH-Z instruction or connect the RESET line to high.
We no longer sell or carry the UNI-48-CLIP, you must purchase this
product seperately. This product does not come with any tech support. Each adapter sold
below only comes with one of the two adapters shown here. It does not come with a test board
or clip. The picture above is for reference only.
| TSOP-48 (NOR X16) |
In Stock - ships in 3-4 days |
$35.00 |
| TSOP-48 (NAND X8) |
In Stock - ships in 3-4 days |
$35.00 |
|
|
